Quick reference

CLI commands

Bash

# Interactive feature multiselect (arrow keys + space)
npx @fivfold/api add stripe

# Non-interactive defaults (payments + webhooks)
npx @fivfold/api add stripe --yes

# Explicit features (works with --yes; overrides default feature list)
npx @fivfold/api add stripe --yes --features=payments,webhooks,connect,checkout,billing

# Stack flags (example)
npx @fivfold/api add stripe --framework=express --orm=prisma --database=postgres

# Preview staged files and AST edits without writing disk
npx @fivfold/api add stripe --dry-run

Overview

The Stripe Kit is a backend-only module for @fivfold/api. It generates a small hexagonal slice: a framework-agnostic port (IStripePaymentsPort), a StripeNodeAdapter that wraps the official stripe npm package, DTO-validated HTTP endpoints, and—when you enable features—ORM-specific persistence for customers, payment-intent tracking, webhook idempotency, and connected accounts. Delivery is either Express (createStripeRouter) or NestJS (StripeModule + StripeController). Card data never touches your API: amounts are resolved on the server; confirmation uses Stripe's client SDKs or hosted pages.

Feature selection is first-class: you choose payments, webhooks, connect, checkout, and billing independently so the CLI does not multiply templates for every combination. Cosmos DB and DynamoDB paths ship container/table stubs and Nest service placeholders until you wire the Azure or AWS SDKs; TypeORM, Prisma, and Mongoose paths include working persistence in the generated service code.

Use the stack sidebar on this page to match Framework and ORM to your project. The sections below list the exact files emitted for that pair, how to mount the router or module, and a full HTTP reference (bodies, headers, responses, and errors). There is no FivFold UI kit for Stripe; a short note on using Stripe's own hosted and embedded flows appears later so PCI-sensitive work stays on Stripe.

Features at a glance

Token	What you get	Key env / config
payments	Stripe Customer + PaymentIntent creation; local customer and transaction rows (SQL/Prisma/Mongoose). Cart totals via `resolveCartTotalCents` (you replace).	`STRIPE_SECRET_KEY`, `STRIPE_DEFAULT_CURRENCY`, optional `STRIPE_DEV_FIXTURE_AMOUNT_CENTS`, optional `STRIPE_PLATFORM_FEE_BPS` with Connect destination charges.
webhooks	`POST /webhook` with signature verification and idempotent event storage; updates payment / Connect rows when those features are also on.	`STRIPE_WEBHOOK_SECRET`; raw body on Nest (`rawBody: true`) or Express raw parser on the webhook route only.
connect	Express connected accounts, account links, optional application fee on destination PaymentIntents via basis points.	Same secret key; platform fee from `STRIPE_PLATFORM_FEE_BPS` when `stripeAccountId` is sent on payment-intent creation.
checkout	Hosted Checkout Session creation; response returns redirect URL and session id.	Dashboard Prices; `STRIPE_SECRET_KEY`.
billing	Create subscription and Customer Portal session URLs.	Billing products/prices in Dashboard; portal configuration; `STRIPE_SECRET_KEY`.

Installation, flags, and feature matrix

Run npx @fivfold/api init in the backend workspace first so fivfold.json exists. The Stripe kit is backend-only: it does not ship React components or card inputs. It scaffolds a hexagonal slice (domain port, Node adapter, optional ORM persistence, HTTP delivery) aligned with Stripe's current APIs (PaymentIntents, Checkout Sessions, Connect Express, Billing helpers, signed webhooks). Legacy Charges API is not generated.

Interactive mode opens a multiselect for features (arrow keys, space to toggle, enter to confirm). Non-interactive: use --yes for defaults payments,webhooks, or pass an explicit --features=payments,webhooks,connect,checkout,billing. If both are present, --features= wins over the default list. Use --dry-run to preview VFS changes without writing disk.

Scaffold (matches sidebar stack)

npx @fivfold/api add stripe

Feature token	HTTP surface	DTOs / persistence	Notes
payments	`POST …/customers`, `POST …/payment-intents`	create-customer, create-payment-intent DTOs; customer + payment transaction rows (except Cosmos/Dynamo stubs)	Amount is resolved in `resolveCartTotalCents` — replace with your cart/order service. Optional `stripeAccountId` for Connect destination charges; `STRIPE_PLATFORM_FEE_BPS` applies application fee when set.
webhooks	`POST …/webhook`	Webhook event idempotency store (TypeORM / Prisma / Mongoose)	Requires raw body verification. Express: `express.raw` on webhook path only. Nest: `rawBody: true`. Handles `payment_intent.succeeded` (if payments) and `account.updated` (if connect).
connect	`POST …/connect/accounts`, `POST …/connect/account-links`	connect DTOs; connected-account row	Express accounts with requested card_payments + transfers capabilities.
checkout	`POST …/checkout/sessions`	create-checkout-session DTO	Creates a Checkout Session; response includes hosted `url`.
billing	`POST …/billing/subscriptions`, `POST …/billing/portal-sessions`	subscription + portal DTOs	Uses Stripe Billing APIs; configure Customer Portal in Dashboard when using portal.

Architecture and flows

The domain defines IStripePaymentsPort; StripeNodeAdapter is the only Stripe SDK touchpoint. HTTP layers validate bodies with class-validator and delegate to the service, which orchestrates persistence then calls the port. Controllers and routes use placeholder auth: replace REPLACE_WITH_USER_ID and wire your session/JWT middleware.

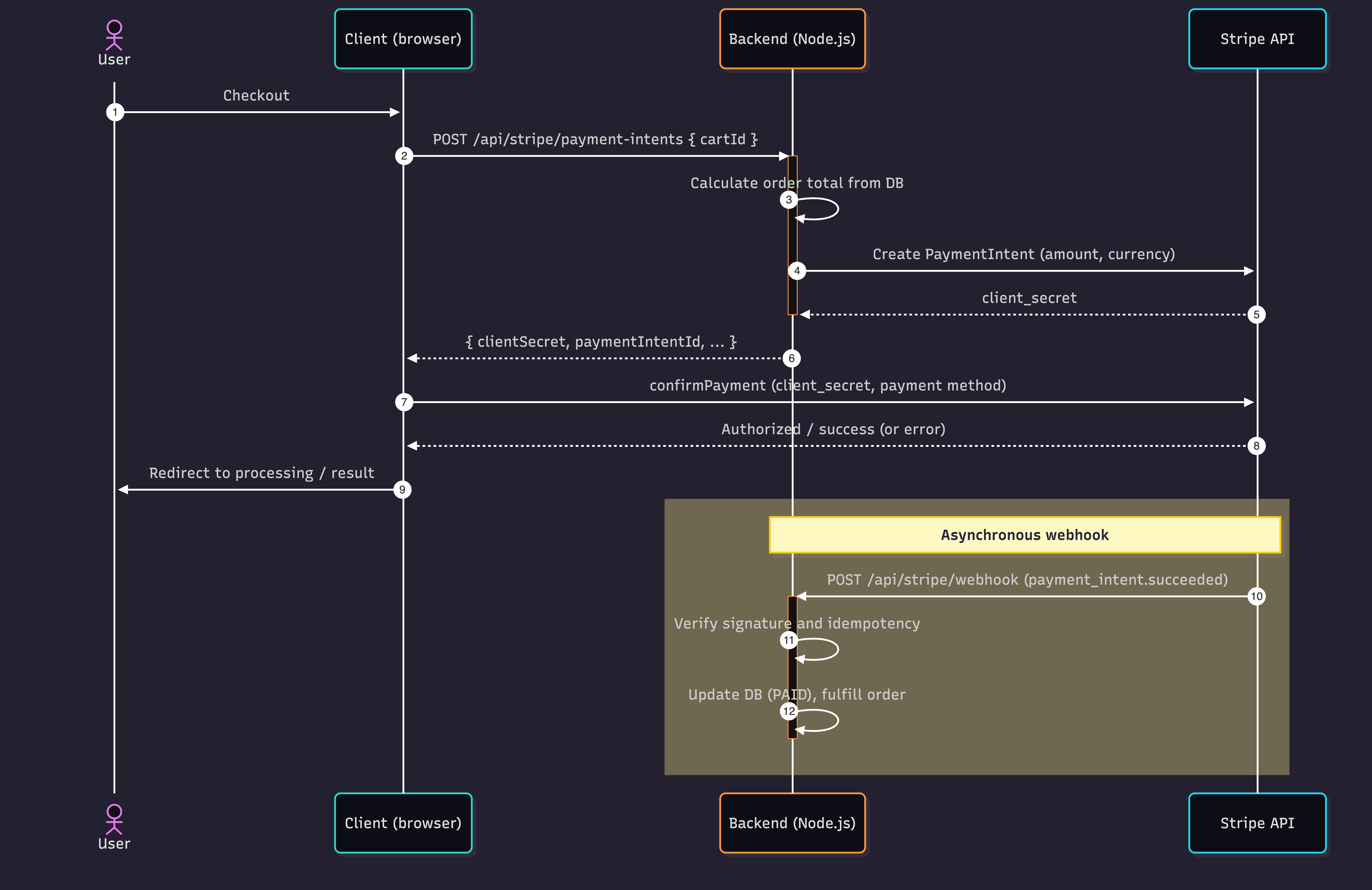

PaymentIntents and asynchronous webhook

End-to-end flow: the client sends only cartId; the backend resolves money from the database, creates the PaymentIntent, returns clientSecret for Stripe.js; confirmation goes directly to Stripe. Fulfillment after success should not rely only on the browser—use the highlighted webhook path for idempotent order updates.

Figure

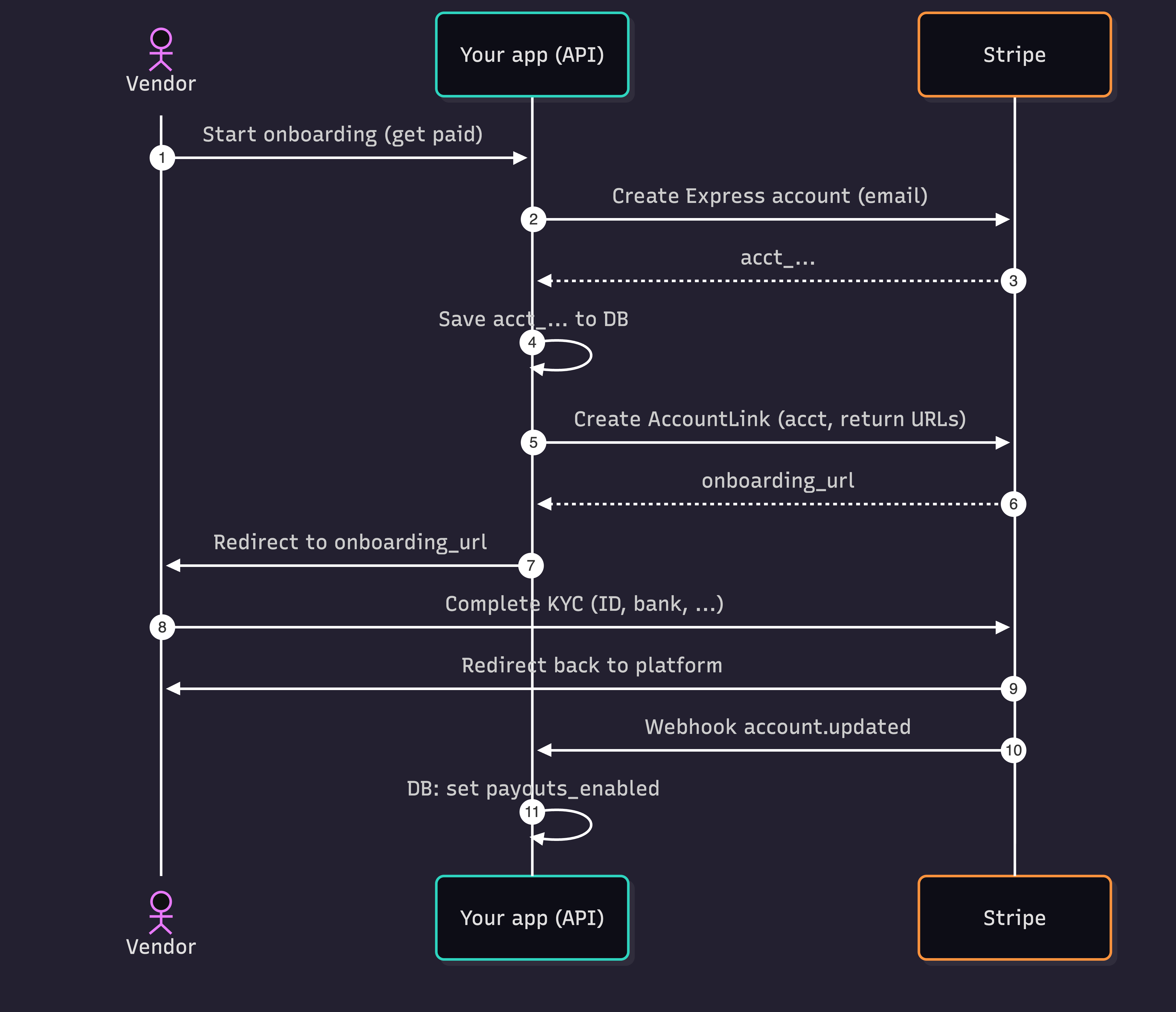

Stripe Connect Express onboarding

Platform creates an Express connected account, persists acct_…, issues an Account Link, and redirects the vendor to Stripe-hosted onboarding. After KYC, Stripe redirects back and sends account.updated; the kit's webhook handler updates payoutsEnabled when the connect feature is enabled.

Figure

Generated file structure

Paths use the default kit output root src/modules/stripe (from outputDir + kit folder stripe in fivfold.json). Below is exactly what is written for nestjs + typeorm.

Default: payments + webhooks

Plain Text

src/modules/stripe/domain/stripe.port.ts
src/modules/stripe/adapters/stripe-node.adapter.ts
src/modules/stripe/dto/create-customer.dto.ts
src/modules/stripe/dto/create-payment-intent.dto.ts
src/modules/stripe/entities/stripe-customer.entity.ts
src/modules/stripe/entities/stripe-payment-transaction.entity.ts
src/modules/stripe/entities/stripe-webhook-event.entity.ts
src/modules/stripe/stripe.module.ts
src/modules/stripe/stripe.controller.ts
src/modules/stripe/stripe.service.ts

Full inventory (all features enabled)

Plain Text

# Every file the kit can emit for nestjs + typeorm
# (omit dto/entity/schema/model slices when the feature is disabled)

src/modules/stripe/
  domain/stripe.port.ts
  adapters/stripe-node.adapter.ts
  dto/create-customer.dto.ts              # payments
  dto/create-payment-intent.dto.ts        # payments
  dto/create-checkout-session.dto.ts      # checkout
  dto/create-connect-account.dto.ts       # connect
  dto/create-account-link.dto.ts          # connect
  dto/create-subscription.dto.ts          # billing
  dto/create-portal-session.dto.ts        # billing

src/modules/stripe/
  entities/stripe-customer.entity.ts          # payments
  entities/stripe-payment-transaction.entity.ts # payments
  entities/stripe-webhook-event.entity.ts     # webhooks
  entities/stripe-connected-account.entity.ts # connect

src/modules/stripe/
  stripe.module.ts
  stripe.controller.ts
  stripe.service.ts

# AST / host app (not under src/modules/stripe/ unless your project layout differs)
# Express: src/app.ts — registerStripe router (see Wire into the app)
# NestJS:  src/app.module.ts — StripeModule import
# NestJS + webhooks: src/main.ts — NestFactory.create(..., { rawBody: true })

Wire into the app

The CLI stages an AST mutation on src/app.ts (Express) or src/app.module.ts (Nest). Adjust import paths if your entry files live elsewhere. Mount point is /api/stripe → routes/controller base stripe, so public paths are /api/stripe/….

TypeScript

// FivFold registers StripeModule in AppModule and imports ./modules/stripe/stripe.module
//
// 1) TypeORM: include Stripe entities in the same connection (forFeature is already in StripeModule).
// 2) Run migrations if you do not use synchronize.
// 3) Webhooks: confirm main.ts contains NestFactory.create(AppModule, { rawBody: true }) (kit AST when webhooks enabled).

Webhooks: Nest must expose raw body on the webhook route; the generated controller reads req.rawBody. Express applies JSON parser only after the webhook route so POST /webhook stays raw.
Auth: Express router includes a no-op authMiddleware; Nest uses req.user?.id when present. Replace with your guards.
TypeORM + Nest: Ensure global TypeORM config loads entities under src/modules/stripe/entities or rely on autoLoadEntities: true.

API reference

Base URL assumed: /api/stripe. All JSON routes expect Content-Type: application/json except the webhook (raw JSON bytes, see below). Successful JSON endpoints return 201 (Express) or Nest default 200/201 as implemented — the tables note status codes.

POST /webhook (feature: webhooks)

URL	POST /api/stripe/webhook
Headers	`Stripe-Signature` (required). Body must be the raw request bytes stringified by Stripe — do not parse/re-stringify JSON before verify.
Body	Raw Buffer (Express) / rawBody (Nest) of the JSON event payload.
Success	`200` JSON `{ "received": true }` or `{ "received": true, "duplicate": true }` when the event id was already processed.
Errors	Missing secret or signature → adapter throws (Express `400` with `{ "error": "…" }`; Nest webhook → `BadRequestException` if raw body missing). Invalid signature → Stripe SDK error surfaced as 400 (Express) or 500 depending on global filter (verify in your app).
Side effects	Upserts webhook event row; on first process updates related payment transaction or connected account when event type matches (see template). Cosmos/Dynamo: implement storage yourself while keeping verify logic.

POST /customers (feature: payments)

Body	`email` string (required, email). `name` optional string. `metadata` optional object of string values.
Success	Express `201`; JSON `{ "customerId": "cus_…" }` (Stripe customer id). Local row upserted with `userId` from auth stub.
Errors	Validation → Nest `400 BadRequestException` with constraint messages; Express `400` `{ "error": "…" }`. Missing `STRIPE_SECRET_KEY` → adapter throws at first Stripe call.

POST /payment-intents (feature: payments)

Body	`cartId` string (required). `stripeAccountId` optional Connect account id for destination charges.
Server behavior	Calls `resolveCartTotalCents(cartId)` (stub returns `STRIPE_DEV_FIXTURE_AMOUNT_CENTS` or 1000). Currency from `STRIPE_DEFAULT_CURRENCY` (default `usd`). Creates PaymentIntent with `automatic_payment_methods`. If `stripeAccountId` set and `STRIPE_PLATFORM_FEE_BPS` valid, sets `application_fee_amount`.
Success	JSON `{ "clientSecret", "paymentIntentId", "amountCents", "currency" }`. `clientSecret` may be null per Stripe if not yet available; normally present for Elements / Payment Element.
Errors	Same validation pattern as customers. Stripe API errors bubble as thrown errors (Express 400 stringified).

POST /checkout/sessions (feature: checkout)

Body	`mode`: `payment` \| `subscription`. `priceId` required. `quantity` optional string (coerced to number, default 1). `successUrl`, `cancelUrl` valid URLs. `customerId`, `stripeAccountId` optional.
Success	`{ "url": "https://checkout.stripe.com/…", "sessionId": "cs_…" }`
Notes	Single line item from `priceId`; extend adapter for multi-line carts.

POST /connect/accounts (feature: connect)

Body	`email` required. `metadata` optional.
Success	`{ "accountId": "acct_…" }`; local row stores payouts flag snapshot.
Errors	Stub ORM paths (Cosmos/Dynamo) return 400 with notImplemented message until you implement persistence.

POST /connect/account-links (feature: connect)

Body	`accountId`, `refreshUrl`, `returnUrl` required. `type` optional `account_onboarding` \| `account_update`.
Success	`{ "url": "https://connect.stripe.com/…" }`

POST /billing/subscriptions (feature: billing)

Body	`customerId`, `priceId` required. `metadata` optional.
Success	`{ "subscriptionId": "sub_…", "status": "…" }`

POST /billing/portal-sessions (feature: billing)

Body	`customerId`, `returnUrl` required.
Success	`{ "url": "https://billing.stripe.com/…" }`

Route summary: webhook (webhooks); customers, payment-intents (payments); checkout/sessions (checkout); connect/accounts, connect/account-links (connect); billing/subscriptions, billing/portal-sessions (billing).

Browsers and Stripe-hosted surfaces

This kit intentionally does not include a client UI layer. For anything involving card numbers or strong customer authentication, use Stripe's own surfaces—Stripe.js with the Payment Element or Card Element, Embedded Checkout, or hosted Checkout / Customer Portal URLs returned by this API—so sensitive data stays inside Stripe's PCI boundaries. Your application should only handle publishable keys in the browser, call these backend endpoints for intents and sessions, and never send raw card data to your server.

Stripe Dashboard, environment variables, and SDK

In the Stripe Dashboard, create a webhook endpoint pointing to your deployed https://your.api/api/stripe/webhook and select the event types you rely on (at minimum payment_intent.succeeded and account.updated if you use the generated handlers). Copy the signing secret into STRIPE_WEBHOOK_SECRET. Use test mode keys until you go live.

.env (backend)

# Required for server-side Stripe API calls
STRIPE_SECRET_KEY=sk_test_...

# Webhooks feature — signing secret from Dashboard
STRIPE_WEBHOOK_SECRET=whsec_...

# Optional: pin API version (must match Stripe typings you use)
STRIPE_API_VERSION=2024-11-20.acacia

# PaymentIntents default currency (lowercase ISO code)
STRIPE_DEFAULT_CURRENCY=usd

# Dev-only stub when cart pricing is not wired yet
STRIPE_DEV_FIXTURE_AMOUNT_CENTS=1000

# Connect: optional platform fee (basis points, 100 = 1%) on destination PaymentIntents
STRIPE_PLATFORM_FEE_BPS=250

Never expose STRIPE_SECRET_KEY or STRIPE_WEBHOOK_SECRET to a browser. The adapter default API version is 2024-11-20.acacia unless overridden.

Security and operations

Replace resolveCartTotalCents with trusted pricing from your database; never accept money amounts from the client for authorization.
Extend processWebhook / handleStripeWebhook for fulfillment logic; keep idempotency on event.id.
Rotate keys and webhook secrets per environment; use Stripe's test/live mode separation.
Connect: complete Stripe Connect onboarding requirements before production charges.
Run database migrations after scaffold (TypeORM, Prisma, or your Mongoose strategy) so Stripe tables exist before traffic.
